Pico Technology is a leading manufacturer of temperature measurement and
environmental monitoring equipment.
For short term temperature measurement,
the TH-03 thermistor converter and the
TC-08 thermocouple converter are both
cost effective and highly accurate.
The Environmon system records data 24
hours a day 365 days a year - even without a computer and will continue
to record data if the mains power fails. It can support up to 30
sensors, spread over a wide area - up to 400 metres from the logger.
All equipment is supplied complete with
cables, connectors, application software and drivers. |
Features
EnviroMon Logger & Alarm System
Measures temperature or other
parameters
Stand alone or PC based Covers a wide area Remote data logging via modem
or via the Internet with ip
logging.
Thermocouple
Converter available to allow connection of thermocouples to the
Environmon system. Model EL041 now available. |
|

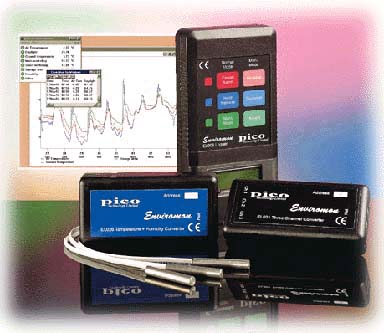

The EnviroMon logger and alarm system
carries out the routine test of monitoring and recording temperatures
and other parameters day and night, and advises you immediately if there
is a problem. It can print reports which summarize the occasions on
which a parameter went out of range. When used with a PC, it can also
keep a record of actions taken.
EnviroMon - How does it work
At the core of the system is the
logger, which is able to store up to 15,000 readings at intervals from a
minute to an hour. The logger automatically displays the current reading
for each sensor in turn. The logger can send detailed or summary reports
directly to a printer at a specified time intervals, or transfer data to
a computer for long term storage or graphical analysis. The logger
contains batteries so that it can continue recording even if the mains
fails.
Enviromon Alarms
|
Features
Measures temperature or other parameters
Displays current readings
Transfers stored data to PC or direct to printer
Works without a computer, even when mains fails
Audible alarm if parameter goes out of range
Easily expandable to 30 channels
Site - wide data collection
Single network cable
Remote data collection via telephone or radio links
Easy to install - telephone - style connectors
Expandability
The system operates using a single network cable, up to 400 metres long,
running between the logger and up to 10 converters.
The network provides power to the
vonverters and collects readings from them. Each three channel converter
can be connected to up to three sensors, in any mix of temperature or
other parameters. There is a range of acceessories, for example a remote
alarm, which can be connected to the network at any point.
|
