Automotive Diagnostics Kit The Pico Automotive Diagnostic Kit can be used to measure and test virtually all the electrical and electronic components and circuits in the modern vehicle including: ignition (primary & secondary), injectors & fuel pumps, starter & charging circuits, crank & cam sensors, lambda, airflow, knock & map sensors.

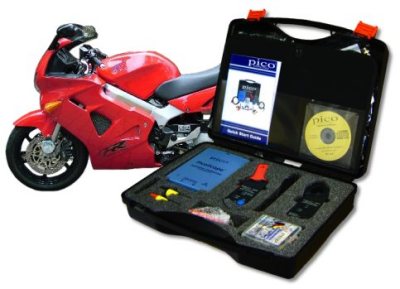

Motorcycle Diagnostic Kit New to our range of automotive diagnostic products is the Pico Motorcycle Diagnostics Kit. For the Pico Motorcycle Diagnostics Kit we took the same award-wining technology that we use in our car and truck diagnostic tools and added our own motorcycle-specific software. The result: an inexpensive diagnostics tool that is suitable for use on any modern motorcycle. At the core of the kit is the PicoScope automotive oscilloscope. This PC Oscilloscope turns your laptop or desktop PC into a powerful motorcycle diagnostics tool for fault-finding the increasing number of sensors, actuators and electronic circuits found on today’s bikes.

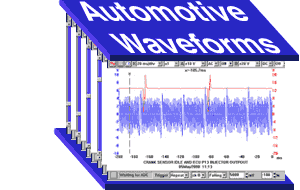

	Library of Automotive Waveforms View a number of captured waveforms using the Automotive Diagnostic Software Auto-Solve Diagnostic CD CD-ROM provides help on a wide range of topics and vehicle problems—including turbochargers, starting circuits, variable valve timing, fault codes and fuel injection.
	Automotive Oscilloscope & Accessories View details on the whole range of Automotive products. Automotive Products Tutorials List of interesting tutorials covering Fuel Injection, Ignition Primary and Secondary Circuits etc.
	Automotive Diagnostic Software Complete engine health check. With just a simple connection to the battery it can perform a cylinder balance test, detect misfires and carry out a compression test. More

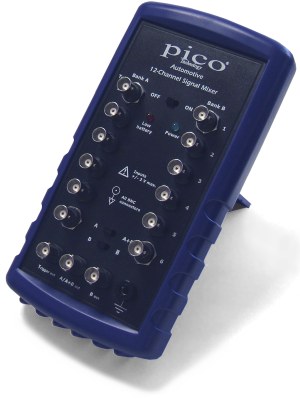

	Mixmaster 12-Channel Automotive Signal Mixer With the Mixmaster 12-channel automotive signal mixer you can view an ignition parade display of up to 12 cylinders on any lab scope. More
	Engine Misfire Detection Identify misfires by cylinder on all Gas engines by simply pressing a button. Save time diagnosing rough running engine problems by quickly determining whether a drivability issue is coming from the engine or drive train systems. More
Auto Product Review	Review done by Professional Motor Mechanic - May 2004
	Request a demo CD Complete the form and a CD will be forwarded to you. Please allow 2 - 3 weeks for delivery.
	Coil-On-Plug Probe Like distributors, spark plug wires are starting to disappear from cars. With the new Coil-On-Plug (COP) ignition systems the ignition coils are connected directly to the spark plugs — eliminating the need for the spark plug wires. With no high-voltage spark wires, and associated wiring looms, COP ignition systems reduce manufacturing and repair costs, and improving ignition performance and reliability.
	600A AC/DC Current Clamps Display starter current waveforms, charging currents and for performing quick compression tests (see waveforms below). The current clamp can measure up to 600 A (AC or DC)

Hi-Tek Training provides Automotive Diagnostic Training in Canada
Click on calendar when you enter their site for details on the courses coming up.

Top 20 Tools 2007 award winner

MOTOR magazine awarded our Mixmaster 12-Channel Automotive Signal Mixer with an acclaimed Top 20 Tools award.

With Mixmaster you can view an ignition parade display of up to 12 cylinders on any lab scope. If you have a 2-channel scope, then Mixmaster can also display 2 engine banks separately with up to 6 cylinders per bank.

Awards

2005	Top Product - Commercial Vehicles Workshop magazine
2003	Top Product - Professional Motor Mechanic magazine
2003	MOTOR Magazine - Top 20 Tools of 2003 award

2002	Professional Motor Mechanic Magazine - winner of the Top Product of 2002 award

NEW
Coil On Plug Sensor

Testing fuel injectors with the FirstLook sensor

Using an oscilloscope it is possible to check the electrical operation of fuel injectors, but until now it has been difficult to spot problems such as blockages that can cause either too much or too little fuel to flow.

Using the FirstLook engine diagnostic sensor, it is possible to quickly measure the relative fuel flow from each injector without removing the injectors from the vehicle.

This injector test for petrol vehicles is one of the new presets in the latest version of the automotive software. To perform this test, simply remove the vacuum pipe from the fuel pressure regulator and attach the FirstLook sensor to the regulator. Each time an injector fires there is a pressure drop in the header rail which is picked up

by the sensor.

If the fuel flow through one injector is different to the others it can instantly be seen as a bigger or smaller waveform than the others. For more details on this application see:

http://www.picotech.com/auto/fl_regulator.htm?N040304

First Look Sensor Information

Delphi DS-800 Service Bulletin
(Interface with Pico ADC-212)
