Automotive PP856 Replaced by PP902


2-Channel Automotive
Diagnostics Kit

Current 2 Channel Standard kit is the PP922 Kit		 Converts PC to Oscilloscope (1435 bytes)

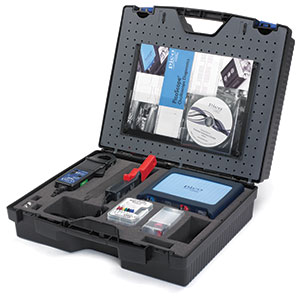

   Pico PP922 - Standard Automotive kit
PP922 is the current 2 Channel Standard Automotive Kit




manuals   Brochures and manuals

The 2-channel version of the Pico Automotive Diagnostics Kit is an inexpensive car diagnostic tool suitable for use on any type of modern automotive vehicle. This powerful and flexible automotive diagnostic tool connects to, and is powered by, the USB port of your PC. It has been designed to be easy-to-use, and so is equally suitable for both novice and expert users.

Among the accessories included in the kit is the Pico 600A current clamp which can be used to display starter current waveforms, charging currents and for performing relative compression tests. A Pico 60A current clamp — ideal for measuring the current drawn by smaller devices, such as fuel injectors and fuel pumps — is also included.



example waveforms

The 2-Channel Automotive Kit (PP494 and PP856 FlexRay Ready Scope kits) have been replaced by the PP922 same scope but different kit contents.

New PP922 details are available at this link: https://www.interworldna.com/pico/automotive/2ch_standard_pp922.php




  • Download the full demo version of the Automotive Software program for evaluation
  • What about our 4 Channel Automotive Starter Kit - Go to the 4425 Scope details page.
         Review of the Picoscope 4000 Kit done by Professional Motor Mechanic

           4000 Series Automotive Kit Parts brochure


Detail page related to the new replacement for the PP494 kit, PP856 & PP902 See the New PP922 Kit

Brochure for the New 4225 and 4425 Picocope


 PP902 replaced by PP922
 [2 Channel Standard Kit with 4223 Scope]:		  Buy the PP922
 [2 Channel Standard Kit with 4225 Scope]:
