Description

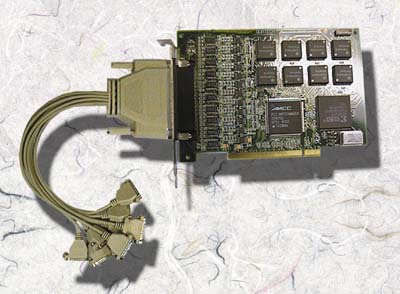

Quatech's ESC-100 8-port RS-232 serial adapter leverages the " Plug and Play " capability defined in the PCI 2.1 bus specification. The board requires only one PCI slot within the personal computer and provides eight independent serial channels. All eight channels are addressed in a continuous 32 byte I/O block for simplified software access. And, all channels may also share one PCI interrupt. An interrupt status register is available for determining the interrupt source.

The ESC-100 comes standard with 8 16550 UARTs containing 16 byte FIFOs. 16750 UARTs with 64 byte FIFOs are available as an option. These upgraded FIFOs greatly reduce CPU overhead and are an ideal choice for heavy multitasking environments.

The ESC-100 is also available with an optional industrial package which includes transceivers with thermal shutdown circuitry and +/- 15kV ESD shock protection and surge suppression.

The ESC-100 connects to peripheral equipment via an octopus style cable which terminates in eight standard male D-25 serial port connectors. A DB option which includes a breakout box and a D-78 to D-78 connector cable is also available.

Software support is provided to configure the cards under Windows 95/98, Windows NT, and OS/2.

Suggested Applications

• Multi-user operating systems

• RS-232 networks (LAN Link, Easy LAN)

• Interface to serial printers, plotters and modems

• RS-232 terminal interfaces


Specifications

Bus Interface: PCI specification 2.1 compliant
Controller:

• Four 16550 UARTs with 16-byte FIFOs (standard)

• Four 16750 UARTs with 64-byte FIFOs (optional)

Maximum Baud Rate: 921.6kbps (with optional expanded FIFOs)

CONNECTORS:

D-25 Male
PIN 2: Data Output
PIN 3: Data Input
PIN 4: Request to Send
PIN 5: Clear to Send
PIN 6: Data Set Ready
PIN 7: Signal Ground
PIN 8: Carrier Detect
PIN 20: Data Terminal Ready
PIN 22: Ring Indicator

POWER CONSUMPTION

+5V:    439mA(typ.)509mA(max.)
+12V:    76mA(typ.) 88mA(max.)
-12V:    72mA(typ.) 82mA(max.)

Operating Systems Supported: Windows 95/98, Windows NT 4.0, and OS/2

Ordering Information

When placing your order, please refer to the following product numbers:

ESC-100DS - 8 channel RS-232 PCI adapter with standard 16550 UARTs
ESC-100IND750 - 8 channel RS-232 PCI adapter with 16750 UARTs and surge suppression package
ESC-100DB-- ESC-100DS with Breakout box
ESC-100DBIND750-- ESC-100IND750 with Breakout box
OS/2 Serial Port Device Driver
Quatech Communication Utilities Package (DOS & WIN 95/98)
