What is a 'Precision' DSO?

In digital electronics a signal change of 1% is usually no problem, but in audio electronics 0.1% distortion or noise can be a disaster. Conventional DSO's only offer 8 bit resolution (8 bit ADC), so can detect at best a 0.4% signal change (see table). This means that they are unsuitable for many applications ranging from monitoring sensors and transducers (temperature, current, pressure) to detecting noise and vibration. Precision oscilloscopes require more than 8 bit resolution.

As well as resolution noise is an issue. The amplifiers that make up the 'front end' of a conventional DSO are designed to have a high bandwidth. Low noise is not a priority and so 1% noise figures are typical. The designer of a 16 bit oscilloscope has a tough job, noise must be kept below 0.0015% (15ppm), otherwise the extra resolution will be swallowed up by noise.

Accuracy is not usually regarded as important for most oscilloscopes. You can make measurements within a few percent (most DSO's quote 3% to 5% DC accuracy) but for accurate measurements you have to reach for a multimeter. With precision oscilloscopes, accurate measurements are possible at full speed. Most hand held meters are 12 bit resolution and a 16 bit oscilloscope is equivalent in resolution to a 4.5 digit 'benchtop' meter.

Precision oscilloscopes in use

The oscilloscope displays below all show the output of a high quality audio pre amp being fed with a pure sinewave. The output is fairly clean, but has a picked up a small amount of 50Hz mains noise. The first display is an 8 bit oscilloscope (almost all DSO's are 8 bit), the second shows a 12 bit oscilloscope (Pico ADC-212) and the third a 16 bit oscilloscope (Pico ADC-216).

8 bit oscilloscope example

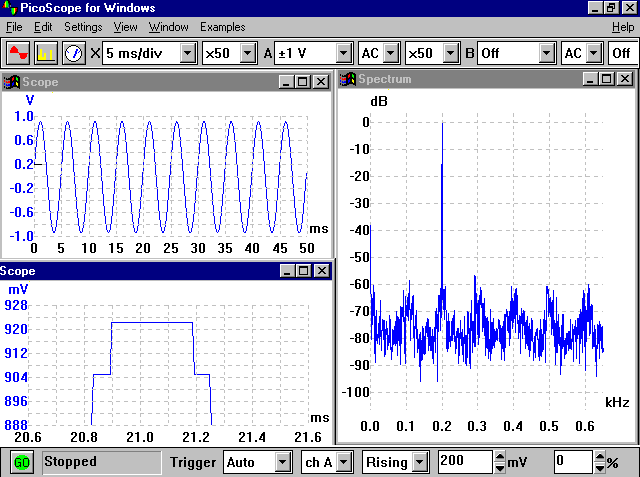

An 8 bit oscilloscope gives a good visual representation of the wave. From the top left hand view you can clearly see that it is a sine wave and work out its approximate frequency and amplitude. If however, you wish to 'zoom' in on the signal to magnify an area of interest, this soon shows up the limitations of an 8 bit oscilloscope. The bottom left trace shows the top trace magnified by x50.

The view on the right shows a spectrum analyser plot (FFT) of the signal. The peak shows the frequency to be exactly 200Hz. The other signals (approx 60dB down) represent the 'noise floor' of the 8 bit scope. To put this into context a typical tape recorder has about 50 to 60dB of dynamic range. The signal contains 50Hz noise due to mains pickup, but the 8 bit scope does not have enough resolution to detect it.

12 bit oscilloscope example

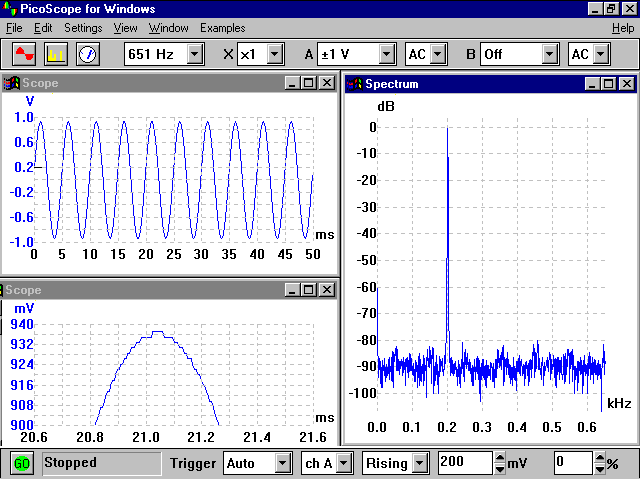

The same signal captured with a 12 bit oscilloscope (Pico ADC-212) looks the same in the normal scope view. The x50 view looks much better, the digitisation 'steps' are only just visible. On the spectrum analyser, we still cannot see the 50Hz noise, but we know that there is at least an 80dB difference between the signal and the noise. For most audio applications, this is enough (near CD quality) to tell that any noise will not be audible.

16 bit oscilloscope example

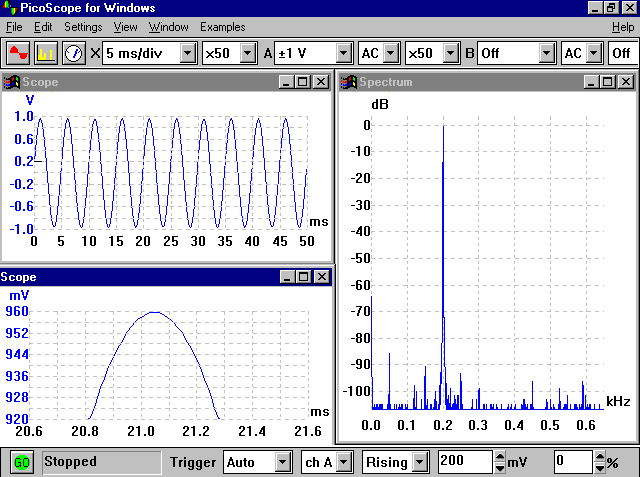

With 16 bit oscilloscopes (Pico ADC-216), the x50 trace is smooth, with no signs of distortion caused by the digitisation. The spectrum trace shows 50Hz noise (approx 86dB down) and also harmonics of 50Hz (at 150Hz and 250Hz). To test that the 50Hz noise was coming from the amplifier not the sinewave source we connected the sinewave directly to the ADC-216: the 50Hz peak disappeared.
