4-Channel Automotive
Oscilloscope Kit

The 4-Channel Automotive Oscilloscope Kit is the latest Automotive Diagnostics Kit from Pico.

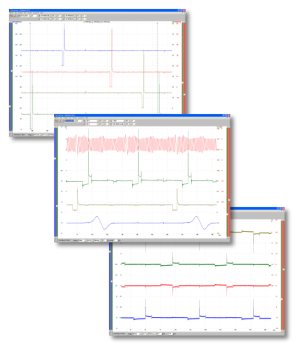

The kit includes the PicoScope 3423 automotive oscilloscope — a USB PC oscilloscope capable of capturing waveforms from up to 4 sensors at once.

Powered directly from the USB port of your PC, this kit can be used either in the workshop or on the road to test and measure virtually all of the electrical/electronic components and systems in the modern motor vehicle.

The 4-Channel Automotive Oscilloscope Kit is suitable for use with any modern vehicle, does not require vehicle-specific cable harnesses and includes free technical support and software upgrades — delivering unrivalled performance and features at a price you can afford.

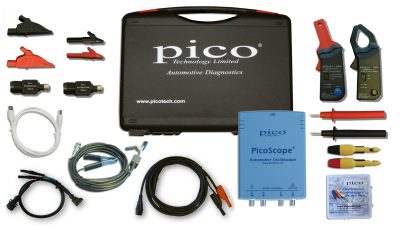

The 4-Channel Automotive Oscilloscope Kit (PP276) contains the following items:

• PicoScope 3423 automotive oscilloscope
• 60A AC/DC current clamp
• 600A AC/DC current clamp
• 4 x TA000 BNC to 4mm test leads
• 4 x Secondary ignition pickup leads
• 2-pin break out lead
• 2 x 20:1 attenuator
• 4 x Multimeter probes (2 black, 2 red)
• 4 x Small crocodile clips (2 black, 2 red)
• 2 x Dolphin clips (1 black, 1 red)
• Insulation piercing probes
• Acupuncture probe set
• Automotive software CD
• Quick start guide
• Sturdy carry case
