PT-100 Temperature Sensors

Standard PT100 Probes

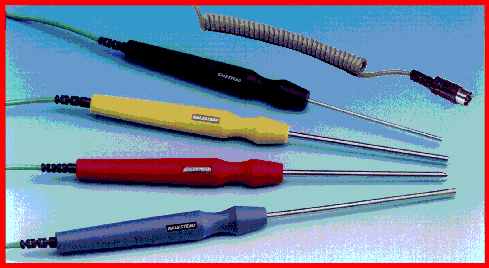

This range of hand held Platinum Resistance Probes are top quality temperature sensors designed to give high accuracy and long life. They come with a 4 core retractable lead (1 Metre extended), plus an integrally moulded handle incorporating a moulded strain relief grommet.

 PT100 sensors

The PT100 ohm sensors are class A tolerance, protected by a stainless steel sheath.

Applications covered are general purpose immersion, standard and heavy duty insertion and standard and high temperature air measurement.
Probe Description Illustration
SE014 Immersion Probe
PT100 Class A tolerance
Temperature range: -75 to +250°C		 PT100 Insertion Probe
SE015 Insertion Probe
PT100 Class A tolerance
Temperature range: -75 to +250°C		 PT100 Insertion Probe
SE016 Insertion Probe Heavy Duty
PT100 Class A tolerance
Temperature range: -150 to +650°C		 PT100 Insertion Probe Heavy Duty
SE017 Air Probe Fast Response
PT100 Class A tolerance
Temperature range: -75 to +250°C		 PT100 Air Probe Fast Response
SE018 Air Probe High Temperature
PT100 Class A tolerance
Temperature range: -150 to +650°C		 PT100 Air Probe High Temperature

Low Cost PT100 Probe

The SE019 is low cost, robustly constructed with a stainless steel protection sheath, moulded mini handle with built in stress relief and complete with 1 metre of cable.

 PT100 sensor
Probe Description Illustration
SE019 PT100 General Purpose
Temperature range: -75 to +260°C		 PT100 general purpose probe

Please see our application note on choosing PT100 sensors.
