Product
Features
-
PC
-
Windows and Sun compatibility
-
High, up
to 10,160 lpi/400 lpmm resolution, accuracy to ±.002 in/.05
mm
-
USB Interface
Standard ( RS-232 is optional )
-
Choice of
pointing devices
cordless or corded, 4 or 16 Button Cursor or Pen Stylus
-
Plug-and-play
design, easily-installable software
-
Broad
compatibility
Product
Summary

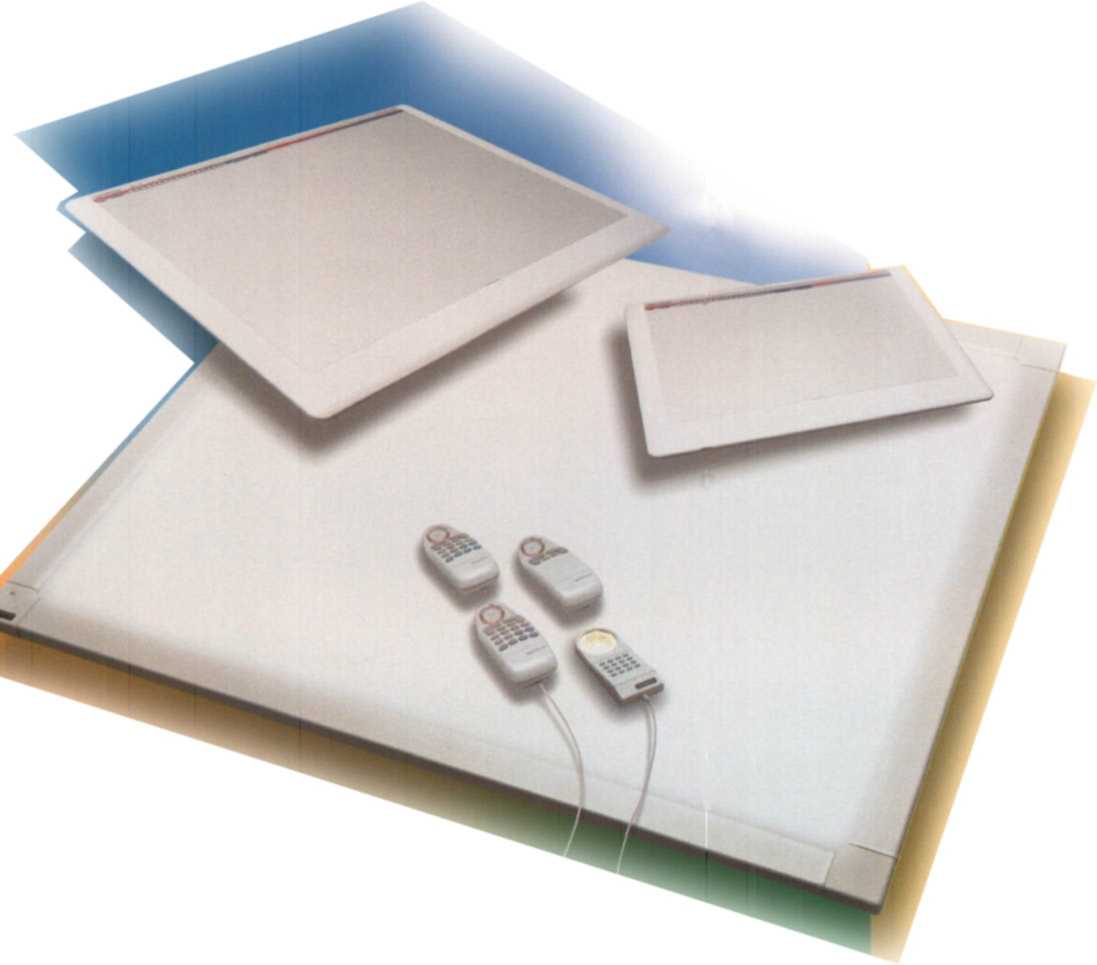

When your work
demands precision, you need a digitizer tablet with resolution
and accuracy that are equal to the task. DrawingBoard VI has
the highest resolution on the market today---up to 10,160 lines
per inch/400 lines per mm. In sizes of 12 x 12 inches or 12 x 18
inches, there’s a DrawingBoard VI tablet to
fit every application in design, architecture, engineering,
textiles, mapping and GIS. (For sizes larger than this please
refer to the DrawingBoard VI series)
DrawingBoard
VI is designed to be easy to use as well as accurate. Standard
features and options to choose from include corded or cordless pen or cursor. Features such as menu
and cursor buttons that can be configured to your most-used
commands makes the DrawingBoard VI an extremely user-friendly
digitizing instrument. It is also compatible with practically
every applicable software program. And the high-tech,
electromagnetic technology that makes DrawingBoard VI so
precise also contributes to its outstanding reliability. Yet
DrawingBoard VI offers this impressive performance, selection
of features, and dependability at a surprisingly competitive
price.
Current Models
|
Model
|
Description
|
| .010
in / .254 mm accuracy, Opaque surface |
|
DB6-1212 |
12
x 12 in / 30.5 x 305 mm tablet |
|
DB6-1218 |
12
x 18 in / 30.5 x 457 mm tablet |
| 34240 |
Obsolete
see DrawingBoard VI |
| .010
in / .254 mm accuracy, Opaque surface |
What's In The Box
Product
Specifications
| Detailed Spec Sheet |
|
|
Adobe
Acrobat Reader required to view spec sheet. Click
on Acrobat icon to download latest version...
|
 |
Platform
Support |
PC |
| Hardware
Interface |
USB
Standard, (RS-232
serial Optional) |
Software
Drivers |
Microsoft
Mouse emulation
Microsoft Windows 2000, XP and Vista
(WinTab compliant)
|
| Resolution |
Up
to 10,160 lpi / 400 lpmm |
| Accuracy |
±0.01"
/ 0.254mm |
| Proximity |
Up
to 0.5 in/12.7 mm |
| Technology |
Electromagnetic |
Output
Formats |
34
industry-standard formats |
Operating
Modes |
Prompt,
point, run, line, track, increment, mouse, delta, and
grid update |
| NOTE:
Digitizer standard equipment (cursors, pens, drivers,
and cable kits) varies according to model. Please
contact Interworld at 877-902-2979
or ask your dealer for complete specifications |
Continuing research and development may
result in specification or appearance changes at any time.
DrawingBoard is a trademark and CalComp is a registered
trademark of GTCO CalComp, Inc. All other product names
are trademarks or registered trademarks of their respective
owners
|
