Dependable. Affordable. Durable. Accurate. Lightweight. Easy to Use.
These are just a few of the many benefits you'll enjoy when you
choose GTCO Super L Series digitizers. The
Super LVI features traditional corded or cordless pointing devices
as well as support for the USB Interface. (RS-232 optional and
available) Combine
this with GTCO's patented sensing technology and precision pointing
devices and the Super L Series adds up to outstanding performance at
an affordable price. For more information, or to locate the reseller
nearest you, call 1-877-902-2979.
Easy to Use
The Super LVI Series' "plug
'n play" installation enables immediate connection to a PC for a
wide variety of applications. Software configuration is accomplished
with GTCO's exclusive SuperSet® Menu (above) in just one simple
step, allowing the user to quickly switch between applications.
Lightweight
The lightest weight, rigid
tablet available today! Provides easier setup and lower shipping
costs.
Compatible
GTCO Type 5/5A,
Summagraphics Microgrid and Calcomp 9500 formats ensure
compatibility with virtually all software packages on most hardware
platforms.
Accurate
Patented sensing technology
and precision pointing devices provide 1/2540" (1/100 mm) resolution
and ±0.01" (±0.25 mm) accuracy. Pointing Devices Select either
GTCO's Stylus (ideal for quantity takeoffs and available with
optional inking inserts for added functionality), or a 4 or 16
Button Cursor (featuring a wide viewing area for precise
digitizing).
Plan Holder
GTCO's Super L Series Plan
Holder attaches as an integral part of the tablet through the Super
L Series' unique C-Channel extrusion. Easily insert or remove single
sheet plans, drawing sets and bound plan books of thicknesses up to
one inch in one simple step. (Optional Accessory)
Durable and Dependable
Built with state-of-the-art
materials including a tough, durable work surface, Super L Series
tablets perform to factory specifications for many years and are
backed by a two year limited U.S. warranty.
Standard Features
Thickness 1.34" (34 mm)
Accuracy ± 0.01" (±0.25 mm) (GTCO's AccuTab® offers even higher
performance. Contact GTCO or your dealer for more information).
Resolution Up to 0.0004" (2540 lpi) / 0.010 mm (100 lpmm)
Technology Electromagnetic
Hardware Interface RS-232 Serial Interface
Output Formats GTCO Type 5/5A Binary & ASCII, Summagraphics
Microgrid, CalComp 9500
Lock Height 0.5" (12.7 mm)
Power Requirements 120V standard (220V or 100V optional) for
digitizer/controller
Battery Life Approx. 2,000 hours for cordless pointing device based
on normal use
Low Battery Automatic Warning for cordless pointing device
USB Connectivity is standard on all Super LVI models (RS-232
Optional)
Operating Temp. 40°F to 115°F (5°C to 46°C)
Storage Temp. 0°F to 150°F (-18°C to 66°C)
Self Diagnostics Automatic Testing of Tablet and Controller
Compliance FCC, Industry Canada, CE
Warranty two Year Limited US Warranty, Free Technical Support
|
| Model |
Active
Area |
Footprint |
Weight |
Shipping
Wt (Avg) |
| 2024 |
20
in x 24 in
(508 mm x 610 mm) |
29
in x 34 in
(737 mm x 864 mm) |
13
lb
(10.5 kg) |
31
lb
(14.1 kg) |
| 2436 |
24
in x 36 in
(610 mm x 914 mm) |
32.5
in x 46 in
(826 mm x 1168 mm) |
19
lb
(8.6 kg) |
42
lb
(19.1 kg) |
|
3036 |
30 in x 36 in
(763 mm x 914 mm) |
35.3 in x 44.5 in
(896 mm x 1130 mm) |
19 lb
(8.6 kg) |
42 lb
(19.1 kg) |
| 3648 |
36
in x 48 in
(914 mm x 1219 mm) |
44.5
in x 60 in
(1130 mm x 1524 mm) |
30
lb
(13.6 kg) |
70
lb
(31.8 kg) |
| 4460 |
44
in x 60 in
(1117 mm x 1524 mm) |
52.5
in x 69 in
(1333 mm x 1753 mm) |
40
lb
(18.2 kg) |
80
lb
(36.4 kg) |
|
Standard Equipment
Equipment Digitizer &
Controller, Choice of Pointing Device, USB Cable, GTCO SuperSet Menu, User's Manual
CD with Tabletworks (Wintab Driver)
Optional Equipment/Accessories
|

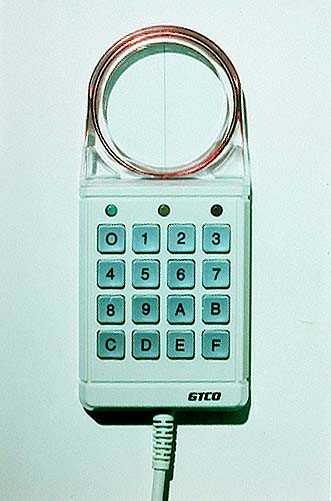

Illuminated 16 Button
High Accuracy Cursor |
16 Button Clear View Cursor
Glass etched precision reticle. |
Pointing Devices : Stylus with tip
and 2 side switches, 4 Button Cursor, 16 Button Cursor (Corded or
Cordless), Accessories, Plan Holder, Universal Mounting Brackets,
Inking Inserts for Stylus, Mounting Bases.
|
