Roll-Up III Digitizer - RUD

 Your ALT-Text here

GTCO Roll Up Digitizer



Flexible,
Rugged Digitizers
for Cost Estimating,
CAD,
Mapping and
GIS Applications

BUY
 US Prices
CDN Prices

Privacy and Security


Canadian Customers please visit our Canadian Web Site for Canadian Pricing etc.   http://www.digitizer.ca/

GTCO exclusive Redundant Grid Technology SM (patent pending) substantially improves the durability and ruggedness of the Roll-Up III(RUD), making it the only choice for true portable use. The Roll-Up III is available with a variety of pointing devices, including a pen shaped Stylus - ideal for quantity takeoffs, and the highly accurate 4 and 16 button MaxVu© cursors which feature a wide viewing area for precise digitizing. For more information, or to locate the dealer nearest you, call 1-877-902-2979.

Native USB connectivity allows power to be supplied via the USB port. Installation is quick and easy—Wintab™ applications use the Roll-Up III's Plug and Play feature, and non-Wintab applications use our exclusive one-step SuperSet menu.

The Roll-Up III (RUD) is available with a variety of pointing devices.

Portable

     Light weight and only 1/8" (3.2mm) thick, the Roll-Up III
     is easily rolled for storage or transport to a task sight.

Easy to Use

     The Roll-Up III's simple "plug 'n play" installation
     enables immediate connection to a PC for a wide variety of
     applications. Software configuration is accomplished with GTCO
     exclusive SuperSet©Menu (shown below) in just one simple step,
     allowing the user to quickly switch between applications.
     to quickly switch between applications.

Flexible Dual Orientation

     The Roll-Up III can be configured with the controller housing oriented
     on the right or left edge of the tablet.

Durable and Dependable

     Built with advanced materials, including a tough Lexan® work
     surface, the Roll-Up III will lay flat, maintain a smooth work
     surface and continue to perform to factory specifications after
     being rolled and unrolled thousands of times. It's backed by a
     two year U.S. warranty and the same service and quality that
     have made GTCO a leading worldwide supplier of digitizers for
     over 25 years.

Return to top of page

Compatible

     GTCO type 5/5A, Summagraphics Microgrid, plus Calcomp 9500
     formats ensure compatibility with virtually all software packages on
     most hardware platforms.

Affordable

     GTCO Roll-Up III's breakthrough digitizer technology delivers superior
     performance at a price below that of conventional large format
     digitizers.

Accurate

     GTCO's new Roll-Up III combines innovative sensing technology with
     precision transducers to provide 1/2540" (1/100 mm) resolution.


Put Links and images as needed here

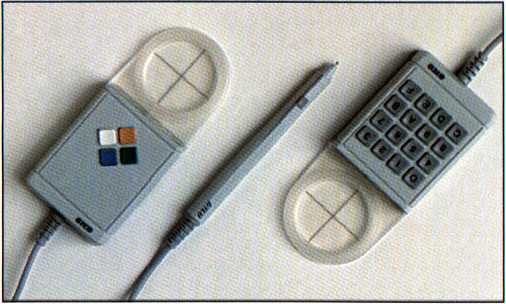

gtco RUD Cursors

Four Button, Pen Stylus and 16 Button

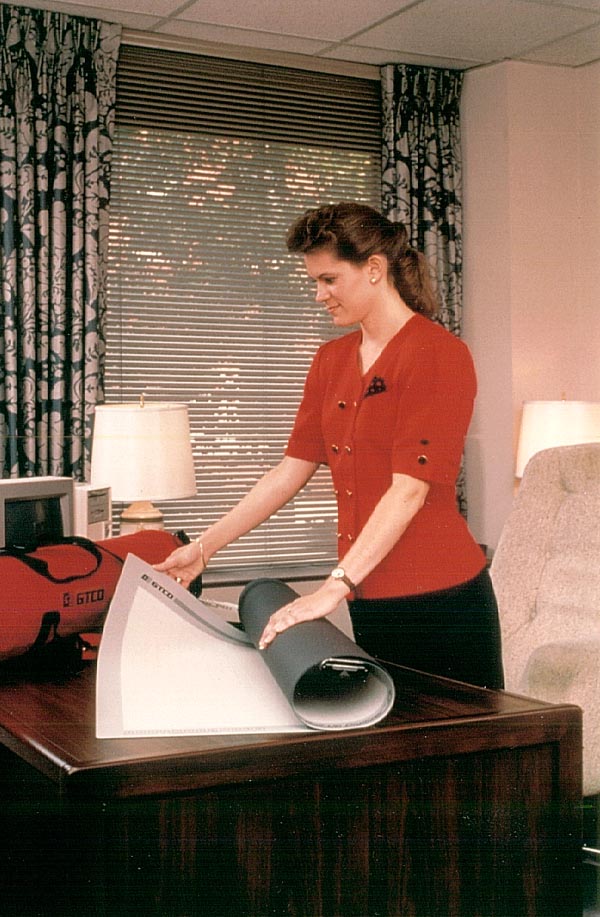

Image of Roll Up Digitizer

Cursors for Roll Up Digitizer

Standard Equipment

Digitizer with Controller
3 Button Stylus or 4 Button Cursor or 16 Button Cursor
GTCO SuperSet Menu
9 to 25 Pin Adaptor
AutoCAD© ADI Drivers
Windows© 3.x, 95, NT, 2000, XP and Vista WinTab Drivers
Shipping/Storage Tube with Insert
Accessory Pouch
User's Manual

Optional
Power Supply
Serial Interface Cable
Carrying Case

Return to top of page

Equipment Dimensions

Model

Active Area

Footprint

Average Weight

Shipping
 Weight

RUD3-2024

20" x 24"

28" x 29"

4 lbs

13 lbs


508mm x 610mm

711mm x 737mm

1.8 kg

5.9 kg

RUD3-3036

30" x 36"

35" x 44"

6 lbs

17 lbs


  762mm x 914mm

889mm x 1118mm

2.7 kg

7.7 kg

RUD3-3648

36" x 48"

41" x 56"

 7.25 lbs

  21lbs


(914mm x 1219mm

1041 mm x 1422 mm

 3.3 kg

9.5 kg

Standard Features
USB included, Serial Interface optional (baud rate up to 38,400)
Software driver - Wintab compliant, 95,98,NT,ME,2000 and XP
 Thickness 0.078" (3.2 mm)
Roll Diameter 8" (203 mm) recommended
Resolution 0.0004" (2540 lpi) / 0.010 mm (100 lpmm)
Hardware Interface RS-232 Serial Interface
Output Formats GTCO Type 5/5A Binary and ASCII, Summagraphics Microgrid, Calcomp 9500
Lock Height 0.5" (12.7 mm)
Power Requirements 120V standard (220-240V or 100V optional) - None required if connected via USB.
Technology - Electrostatic - See note below
Operating Temp. 40°F to 115°F (5°C to 46°C)
Storage Temp. 0°F to 150°F (-18°C to 66°C)
Warranty Two Year Limited US Warranty, Free Technical Support

Optional equipment/accessories
Pointing Devices 4 Button MaxVu Cursor, 16 Button MaxVu Cursor
Accessories Plan Holders, Deluxe Travel Case
Drivers Sun ADI Driver, Windows NT, Windows 95
