| Complete CDMA Tool Box |
 |
|
|
Tool
Box 1: P/N
NTGS0088 A0808939 Includes all cables for both Legacy and Metrocell Tests and required interface card - Complete Hardware System |
||
| (DMI Software to be purchased separately from Nortel Networks - Please direct all software queries to your Nortel Networks sales rep) (Win2000 requires Version 2.1 or later, XP Requires 3.0 or newer) | |||
| NTCDMA-RS485 | PCMCIA Interface Board - RS422/485 | ||

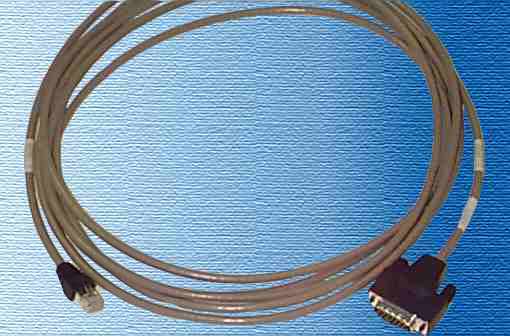

| NTGD0112 | Legacy Ethernet Cable |
 Click here for a larger picture |
|
| NTGD0121 | Legacy DMI Cable |
Click here for a larger picture |
|

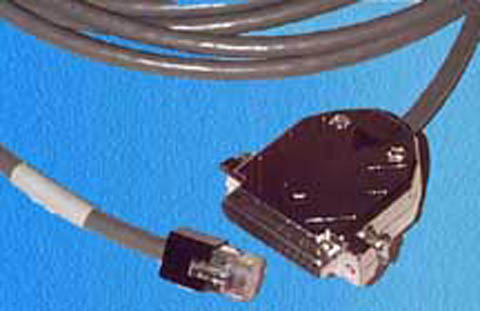

| NTGS0087 | Metro Cell DMI Cable |
 Click here for a larger picture |
|

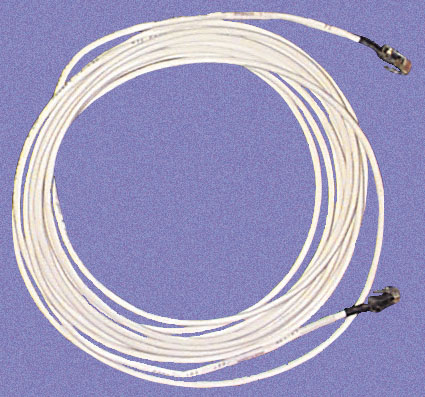

| NTGS4210 | Metro Cell Ethernet Cable |
 Click here for a larger picture |
|

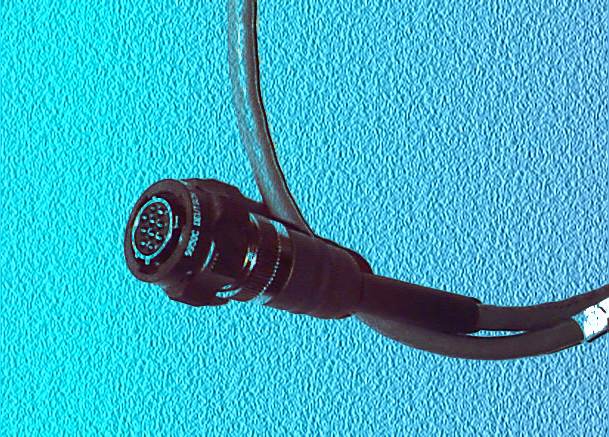

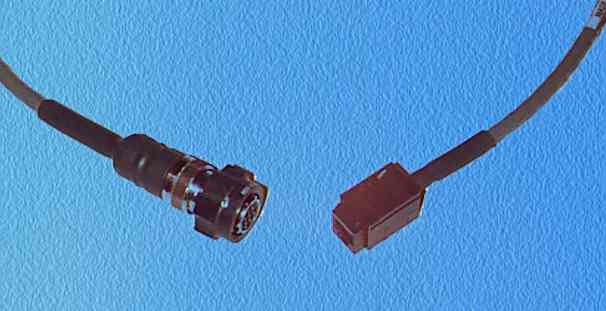

| NTGS8055 | XDM/FRM Cable | ||
| Optional | |||
| NTGY1115 | MFRM DMI Cable required by all new installations utilizing MFRM (Multi Frequency Radio Module) | ||
|
NTGD0114 |
DMI Cable for RFIC/JRFIC - This cable is used specifically for DMI applications on the JRFIC card on the 800 MHz Legacy Product. | ||
| NTGY3018 | MFRM-2 DMI Cable | ||
| Metrocell Tool Box |
|
|
|
Tool Box 2: Includes all cables for Metro Cell Tests and required interface card - Complete Hardware System |
||
| (DMI Software to be purchased separately from Nortel Networks - Please direct all software queries to your Nortel Networks sales rep) | |||
| NTCDMA-RS485 | PCMCIA Interface Board | ||
| NTGS0087 | Metro Cell DMI Cable |
Click here for a larger picture |
|
| NTGS4210 | Metro Cell Ethernet Cable |
Click here for a larger picture |
|
| NTGS8055 | XDM/FRM Cable | ||
Please specify whether you require the MFRM
(Optional) cable at time of ordering.
This cable is NOT part of the standard Metrocell Toolbox #2.
| Legacy Tool Box |
|
|
|
Tool Box 3 (Includes all cables for Legacy Tests and required interface card - Complete Hardware System) |
||
| (DMI Software to be purchased separately from Nortel Networks - Please direct all software queries to your Nortel Networks sales rep) | |||
| NTCDMA-RS485 | PCMCIA Interface Board | ||
| NTGD0112 | Legacy Ethernet Cable |
 Click here for a larger picture |
|
| NTGD0121 | Legacy DMI Cable |
Click here for a larger picture |
|
|
OPTIONAL CABLES |
|||
| NTGY3018 | MFRM-2 DMI Cable | ||
| NTGY1115 | MFRM DMI Cable | ||
|
System Requirements
|
|||
| Laptop Hardware | |||
| Dell Latitude XPI Laptop | While Nortel Networks uses only the Dell XPI, testing has confirmed that Toshiba laptops work as well. | ||
| 166 MHz Pentium/2 Gigabyte Hard Drive, 64 Megabyte RAM | 166Mhz Processor speed is considered the minimum baseline speed. | ||
| Ethernet Card | Speak with your Nortel Sales Rep for Recommendations. | ||
|
OS - Microsoft Windows 95, 98,ME 2000* |
Currently Available. | ||
|
Windows 2000 Support
Starting with Version 2.1, CDMA Toolbox fully supports Windows 2000. (XP Requires 3.0 or newer) The user's Guide has information on obtaining and installing the RS-422 card drivers for all supported versions of the windows operating system. (DO NOT INSTALL THE DRIVERS THAT SHIP WITH THE CARD or the Drivers from the web - Nortel provide the correct drivers as part of the Vortex Software!) Please contact your Nortel Sales Rep for further details. |
|||
 |
|||
| Additional Hardware |
|
||
|
NTCDMA-RS485 Single Channel PCMCIA RS-422/RS-485 Multi-Protocol Card. |
Order this card From Interworld, included with any of the CDMA Tool boxes. In stock for fast delivery. ( 5 year Warranty when bought as part of a CDMA toolkit - effective on purchases made after July, 2001. Orders prior to this date carry a 2 year warranty). | ||
|
|
Delivery Update
We have Quantity 16 of the DMI Cables for RFIC/JRFIC Please call or submit the quote/order request form for a firm quote or to initiate an order. |
||
Warranty:
Interworld warrants
all hardware provided as part of the CDMA tool box for two (2)
years parts and labor (PCMCIA card carries a 5 year Warranty return to factory
after year 2). Items need to be returned prepaid to any of our
facilities in North America.
This warranty does not apply to the interface card when purchased on it's own,
warranty for boards/cards bought on their own will be one (1) year only.
